PW800

CAD Downloads

PW800 Downloads

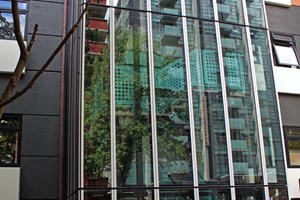

The Thermosash PW800 is a two sided structurally glazed curtainwall with mechanically engaged expressed vertical mullion elements, providing an accent on the verticality of the building façade.

PW800 - 150mm Mullion Double Glazed Seismic

Download files

PW800 - 160mm Mullion Double Glazed

Download files

Thermosash Curtain Wall Fixing Bracket

Download files

Specification

We recommend using Masterspec 4211TS Curtainwall when specifying this suite.

Finishes

  • Polyester powder coat - both standard and special colours available.
  • Anodised - all anodised colours available - commercial grade 20 micron finish recommended.
  • PVF2 Fluorocarbon finishes - Available on request.
