Extruded Aluminium Cladding System

Aluminium is versatile, light weight, easily extruded into complex shapes, has a low metal reactivity and is non-corrosive providing a low maintenance and relatively low-cost facade solution.

ENCLAD™ is Thermosash’s proprietary range of bracket profiles engineered specifically to support rainscreen cladding.

ENCLAD™ Rainscreen Support Systems are adjustable to accommodate cavity depth requirements, insulation and firestops and take up building construction tolerances.

Extruded Aluminium - Horizontally Laid

ENCLAD™ EN01 - Secret Fixed: suitable for thin smooth cladding.

Download PDF for window, door and wall abutment plan views, sections and details.

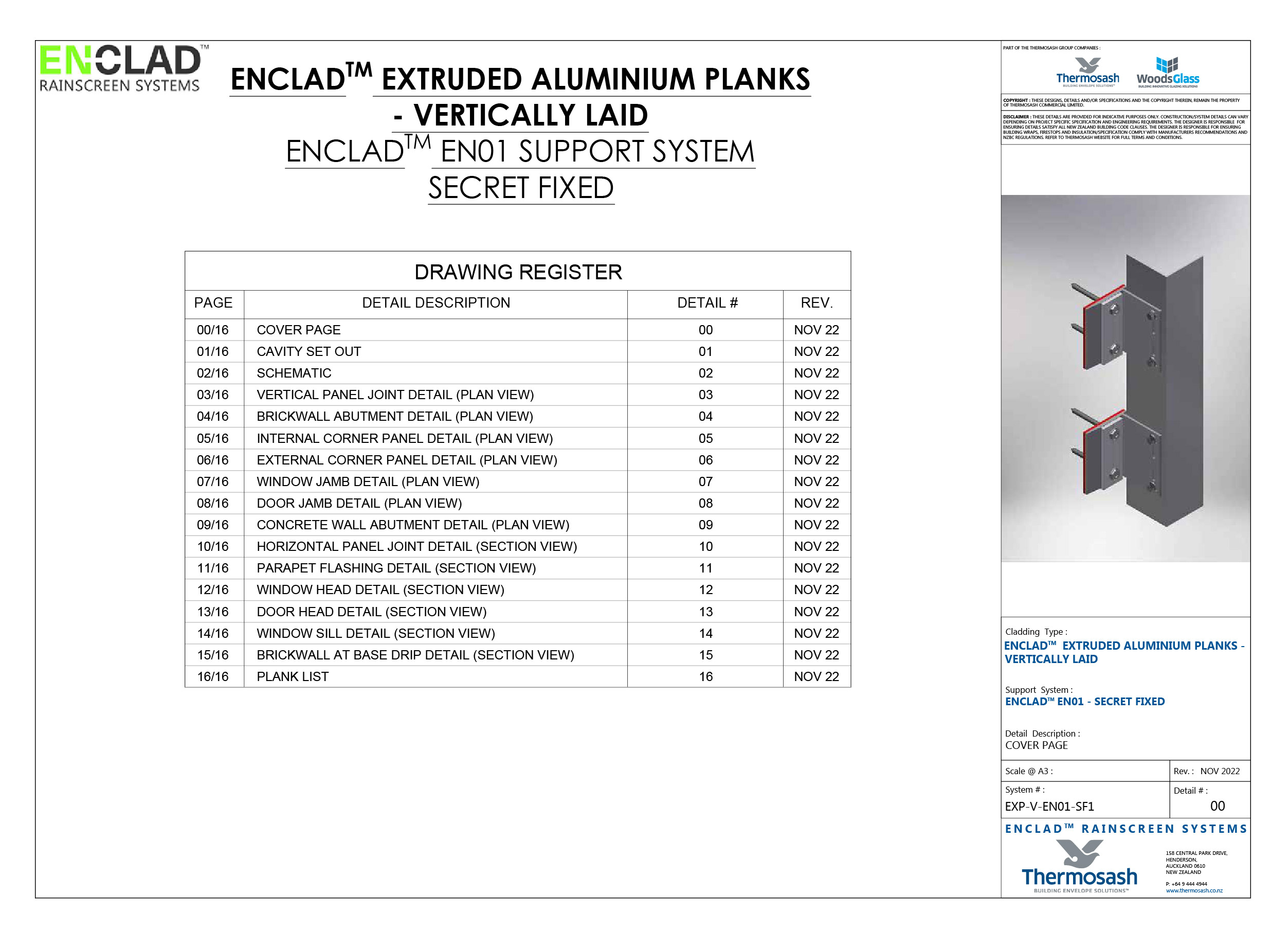

Extruded Aluminium - Vertically Laid

EN01 is suitable for visible or discrete rivet or face fixing of thin smooth cladding.


ENCLAD™ EN01 - Secret Fixed: download PDF for window, door and wall abutment plan views, sections and details.

Specification

We recommend using Masterspec 4216IR RAINSCREEN CLADDING SUPPORT SYSTEM when specifying this system type.

Finishes

ENCLAD™ SYSTEM

Polyester powdercoat - both standard and special colours available. (Polyester powder organic coating in accordance with WGANZ PQAS and AS 3715, and AAMA 2604).
