High Pressure Laminate Cladding System

High Pressure Laminate (HPL) is highly durable, offers versatile architectural design in colour and finishes, including patterned prints, and is suitable for exterior and interior use as cladding, soffits, balcony parapets and screening.

ENCLAD™ is Thermosash’s proprietary range of bracket profiles engineered specifically to support rainscreen cladding.

ENCLAD™ Rainscreen Support Systems are adjustable to accommodate cavity depth requirements, insulation and firestops and take up building construction tolerances.

High Pressure Laminate Support - EN01

ENCLAD™ EN01 - Visible Fixed: is suitable for thin smooth cladding.

Download PDF for window, door and wall abutment plan views, sections and details.

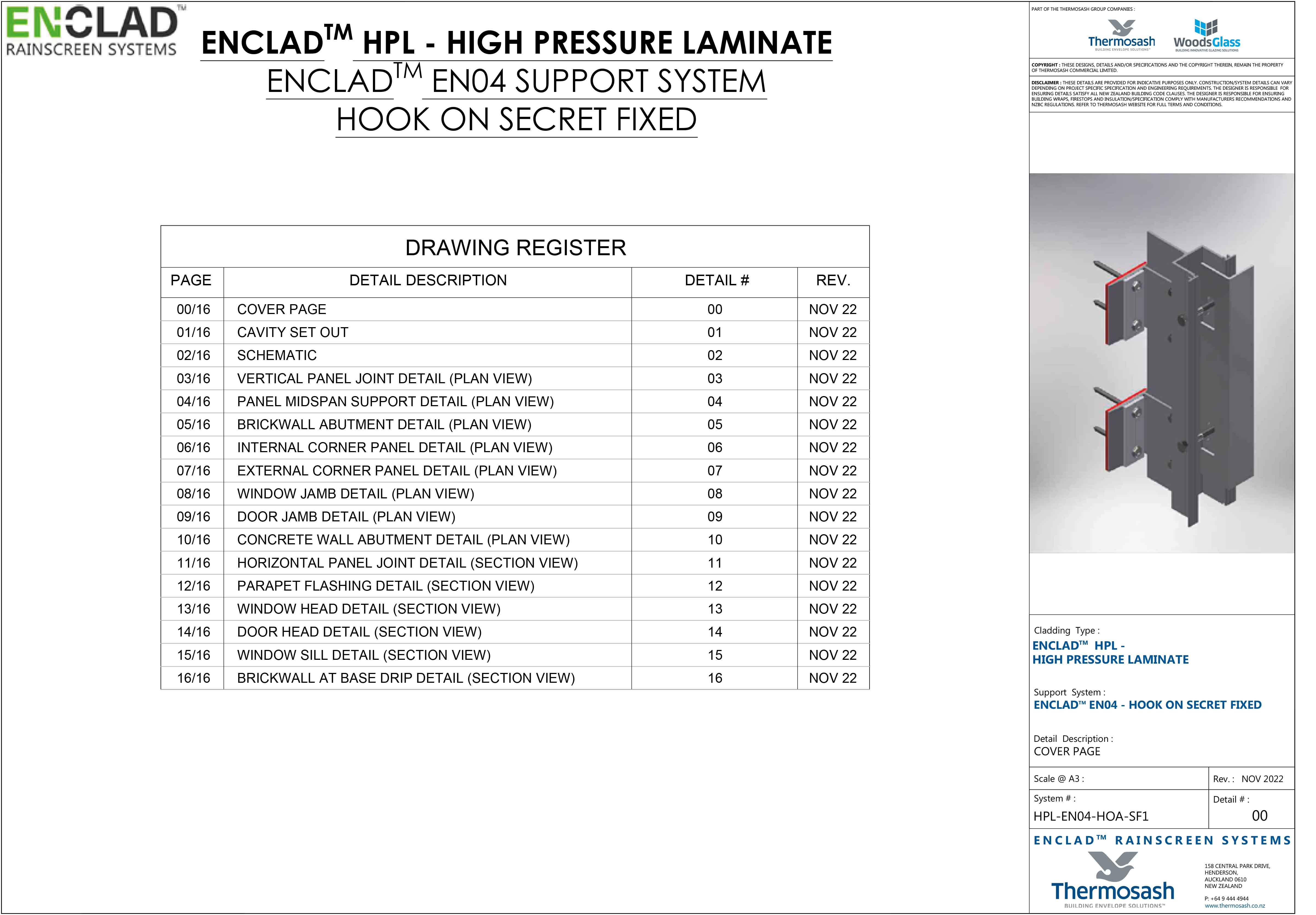

High Pressure Laminate Support - EN04

ENCLAD™ EN04 - Secret Fixed: is suitable for large size or heavy weight cladding.

Download PDF for window, door and wall abutment plan views, sections and details.

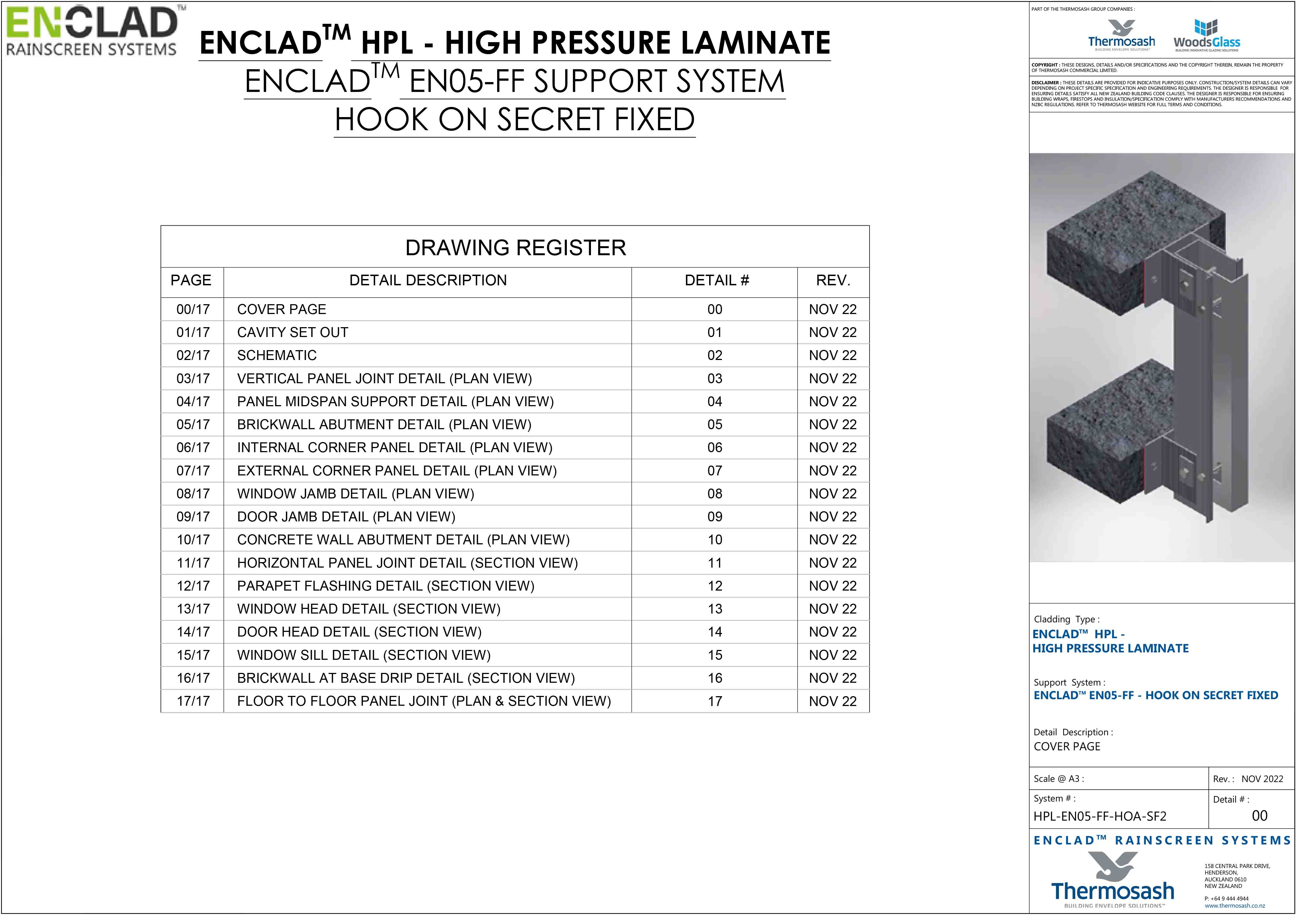

High Pressure Laminate Support - EN05-FF

ENCLAD™ EN05-FF - Secret Fixed: is suitable where floor to floor spans are required (i.e. non-load bearing walls).

Download PDF for window, door and wall abutment plan views, sections and details.

Specification

We recommend using Masterspec 4216IR RAINSCREEN CLADDING SUPPORT SYSTEM when specifying this system type.

Finishes

ENCLAD™ SYSTEM

Polyester powdercoat - both standard and special colours available. (Polyester powder organic coating in accordance with WGANZ PQAS and AS 3715, and AAMA 2604).
