Porcelain Tiles Cladding System

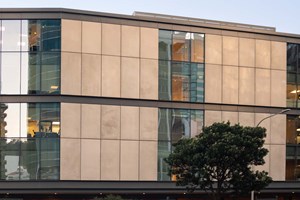

Porcelain is a low maintenance, non-combustible product providing versatile aesthetic possibilities from sleek modernism to organic stone lookalikes.

ENCLAD™ is Thermosash’s proprietary range of bracket profiles engineered specifically to support rainscreen cladding.

ENCLAD™ Rainscreen Support Systems are adjustable to accommodate cavity depth requirements, insulation and firestops and take up building construction tolerances.

Porcelain Tiles Cladding Support - EN03

ENCLAD™ EN03 - Hook On Secret Fixed: suitable for medium size or medium weight cladding.

Download PDF showing window, door and wall abutment plan views, sections and details.

Porcelain Tiles Cladding Support - EN05-FF

ENCLAD™ EN05-FF - Hook On Secret Fixed: suitable where floor to floor spans are required (i.e. non-load bearing walls).

Download PDF showing window, door and wall abutment plan views, sections and details.

Specification

We recommend using Masterspec 4216IR RAINSCREEN CLADDING SUPPORT SYSTEM when specifying this system type.

Finishes

ENCLAD™ SYSTEM

Polyester powdercoat - both standard and special colours available. (Polyester powder organic coating in accordance with WGANZ PQAS and AS 3715, and AAMA 2604).
