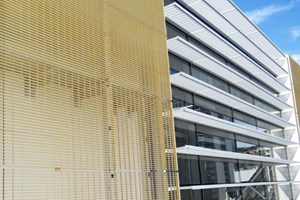

Thermosash Shadegrate™ - is a versatile aluminium shading element engineered as a non-trafficable screen that can vary in grid pattern to suit your project's needs (within the constraints of the tooling). It can be installed vertically or horizontally to provide very effective shading to the exterior of the building, whilst enabling a good degree of direct visual sight-line. It can also be incorporated into code compliant architectural balcony balustrades.

Shadegrate™ - Aluminium Grill Panels

Download files

Specification

When specifying the screens the following factors need to be considered. Our in-house engineers then undertake analysis to provide the most structurally economic solution:

  • Screen use - vertical or horizontal shade device / human traffic / ventilation
  • Shade requirement
  • Wind loading
  • Seismic loading back to the structure
  • Fixing locations

Sizing:

  • Panel size is limited only by Anodise bath / Powdercoating or transporting limitations - call us to discuss your project
  • Can be powder coated or anodised to any available colour.



ShadegrateTM

ITEM

SIZE

NOTES

Max Width

1230mm

1200mm preferable*

Max Width

1230mm

1200mm preferable*

Max Length

3200mm

Could do 3600mm but harder to handle. Shorter the better.

Bar Size

40 x 3mm

Square* or round edge

Slot

50 x 30

Centre to centre



50 x 60

Centre to centre



50 x 90

Centre to centre



100 x 30*

Centre to centre



100 x60

Centre to centre

* Items are standard or preferred

Finishes

  • Polyester powdercoat - both standard and special colours available
  • Anodised - all anodised colours available - commercial grade 20 Micron finish recommended
  • PVF2 Fluorocarbon finishes - available on request
