UP40 Unitised Partition Downloads

Thermosash UP40 is a high quality sustainable Unitised Partition Suite custom designed for modern fitout and refurbishments. The system is configurable and engineered to be easily assembled and disassembled.

Spanning ability: usually ~1200mm x 2700mm (up to 3000mm subject to engineering).

Aluminium section sizes: 100mm self-supporting (no head fixing and minimal structure required).

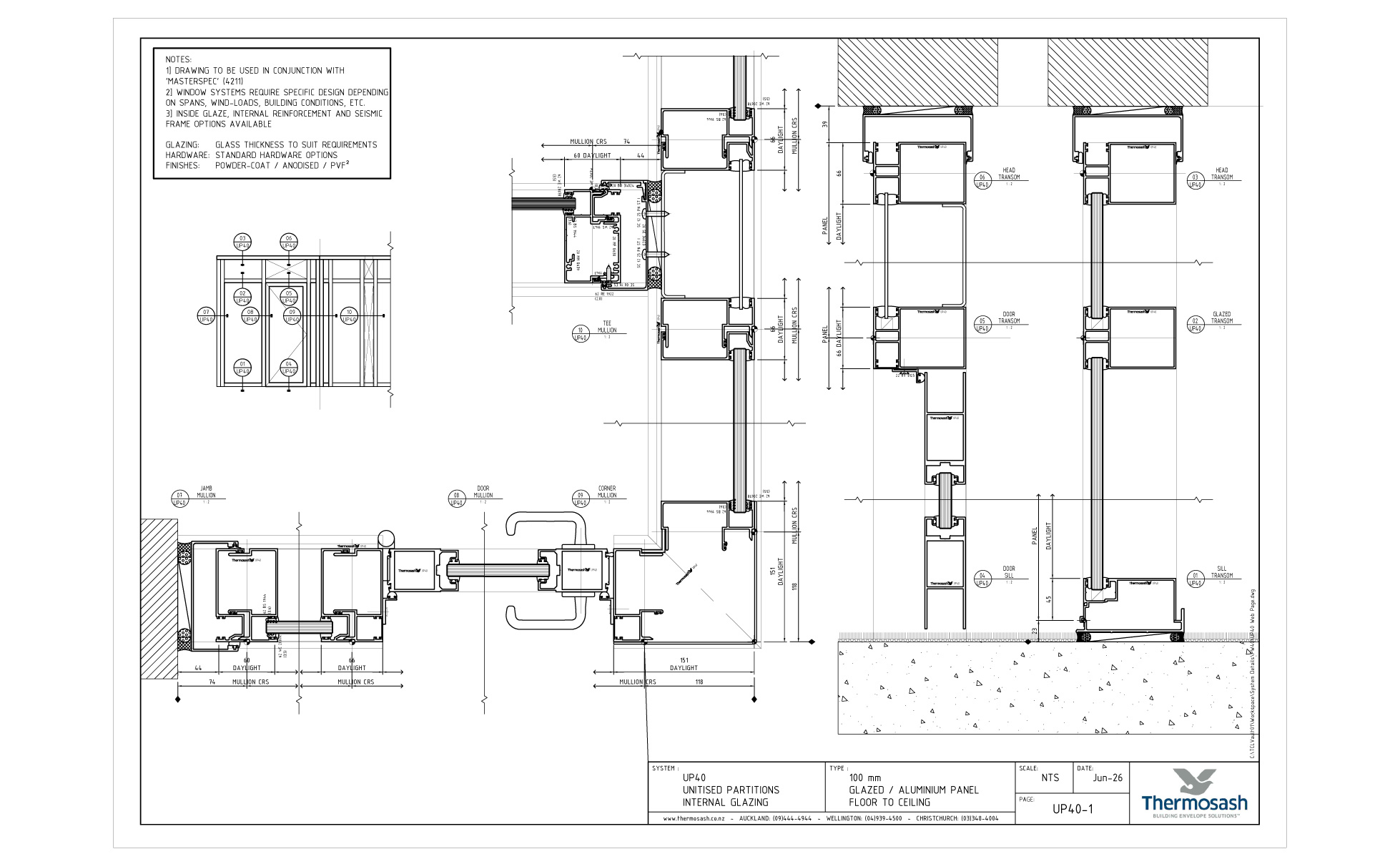

Glazed & Aluminium Partition - floor to ceiling with door detail

Download files.

Specification

We recommend using Masterspec 4211TS Curtainwall when specifying this suite.

Finishes

  • Polyester powder coat - both standard and special colours available.
  • Anodised - all anodised colours available - commercial grade 20 micron finish recommended.
  • PVF2 Fluorocarbon finishes - available on request.
