Delta 40 Commercial Window

CAD Downloads

Delta 40 Commercial - Window Downloads

An extremely versatile product - outer frame construction - tenoned in a unique manner to provide a very strong and twist-free connection which removes the reliance on assembly screws for strength and small joint sealant for weathering of fabricated joints.

Delta windows can accommodate virtually any thickness of glass or panel from 4mm to 28mm.

Delta windows integrate with perimeter seismic frames and (where required) seismic transoms to meet specified vertical or horizontal building movements (internally or externally glazed).

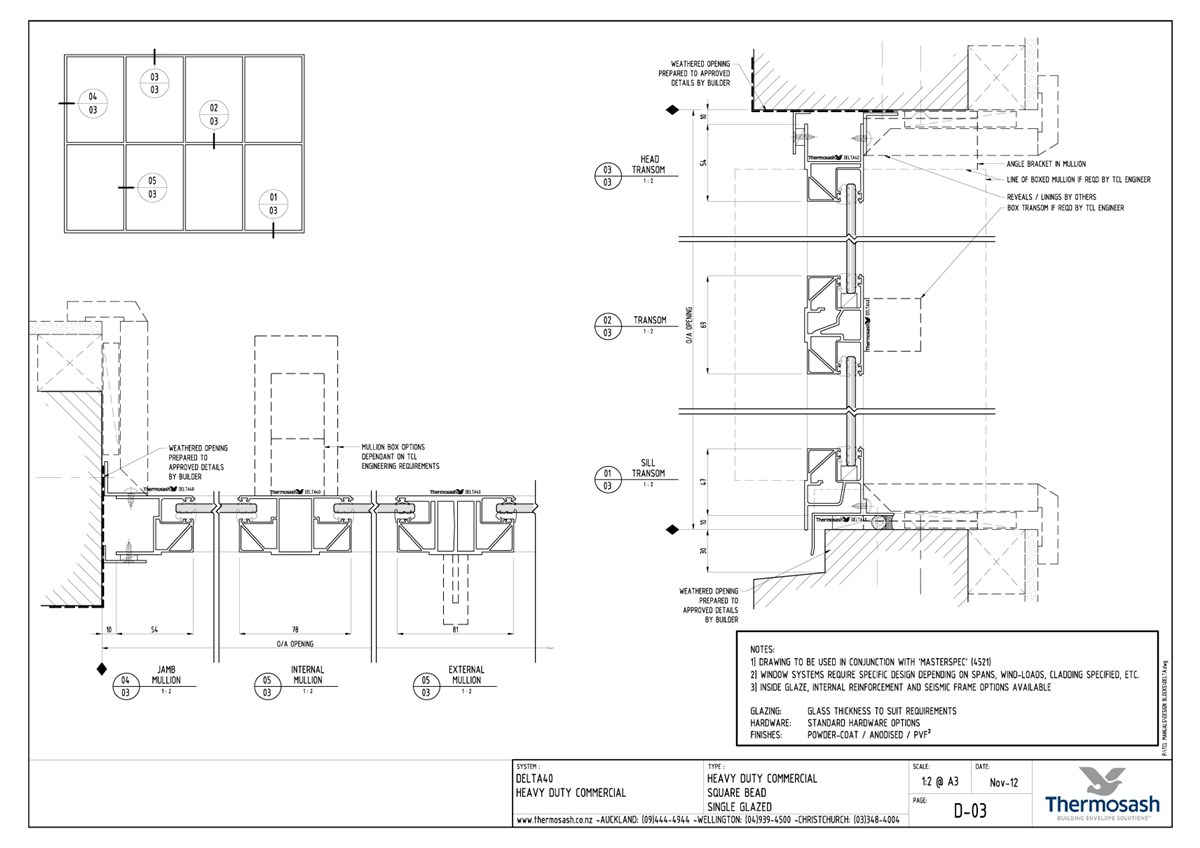

Delta 40 Commercial - Square Bead Single Glazed

Download files

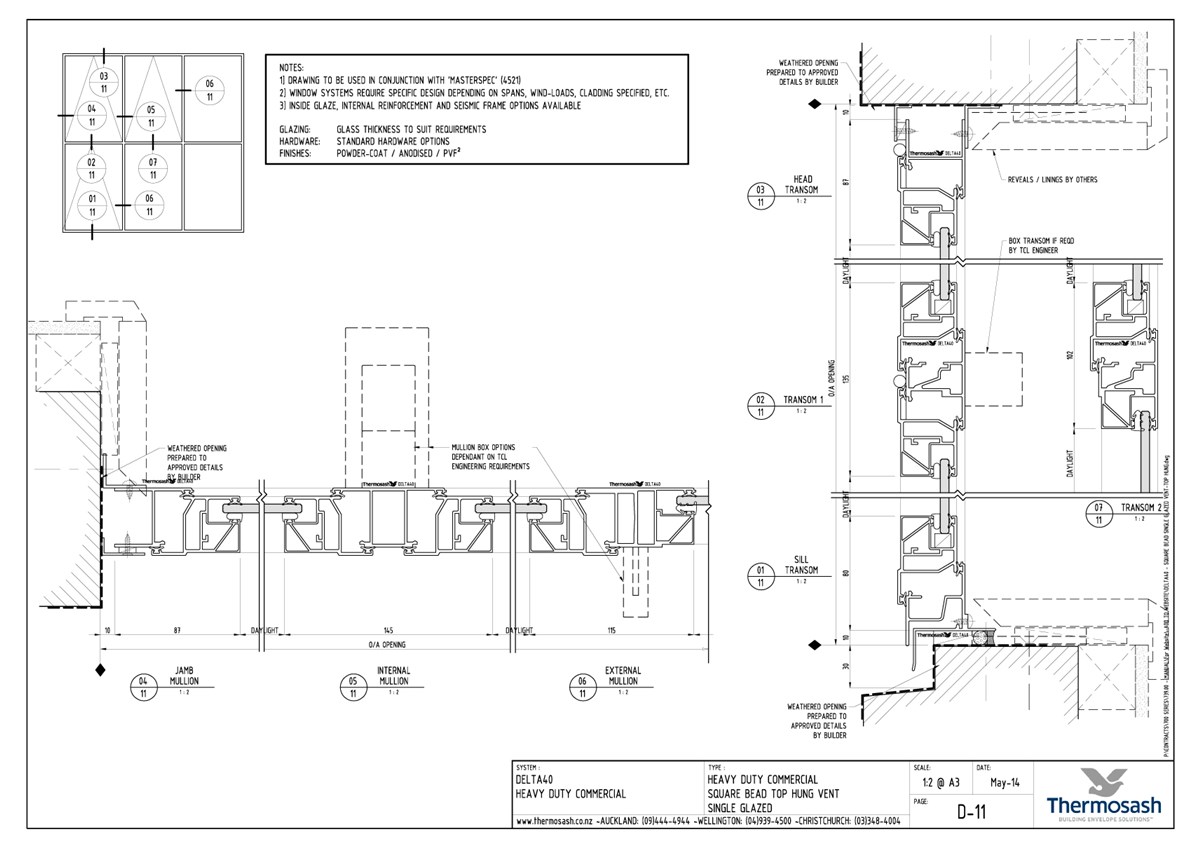

Delta 40 Commercial - Square Bead Single Glazed Top Hung Vent

Download files

Delta 40 Commercial - Seismic Square Bead Single Glazed

Download files

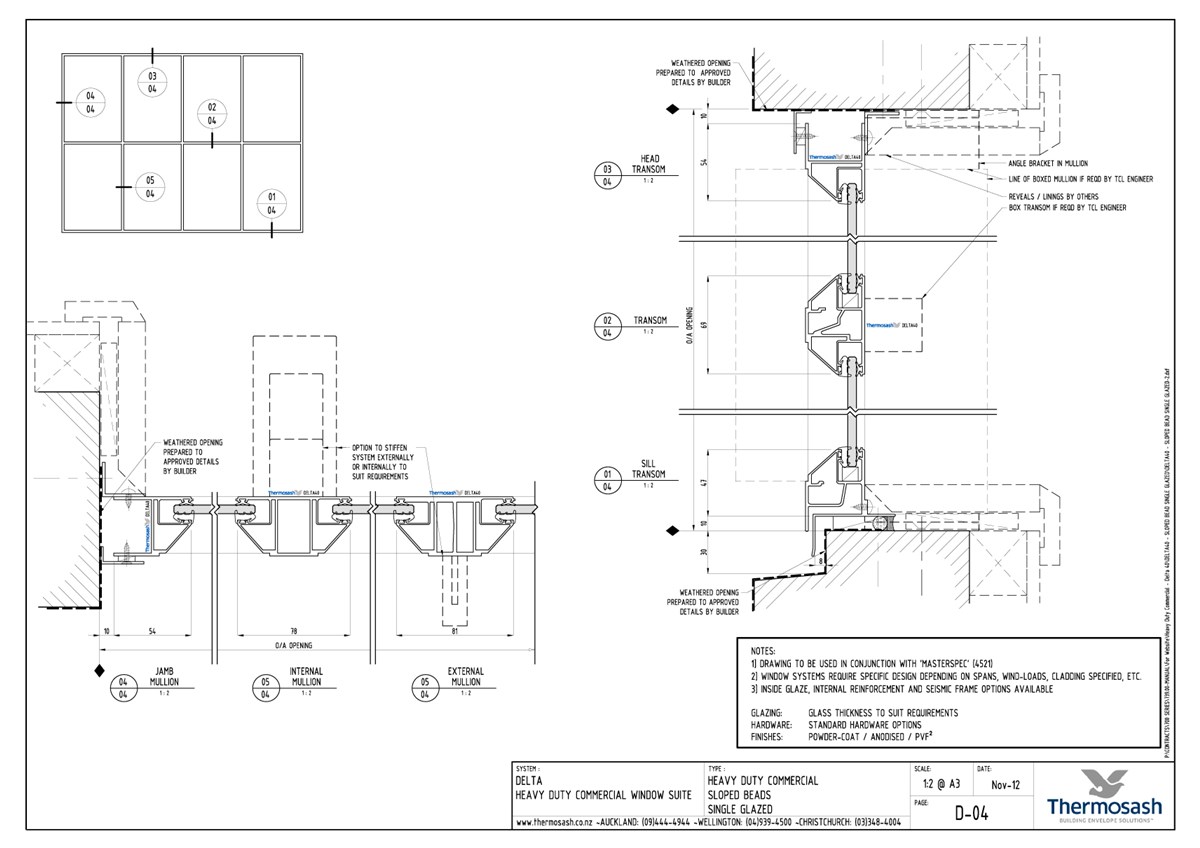

Delta 40 Commercial - Sloped Bead Single Glazed

Download files

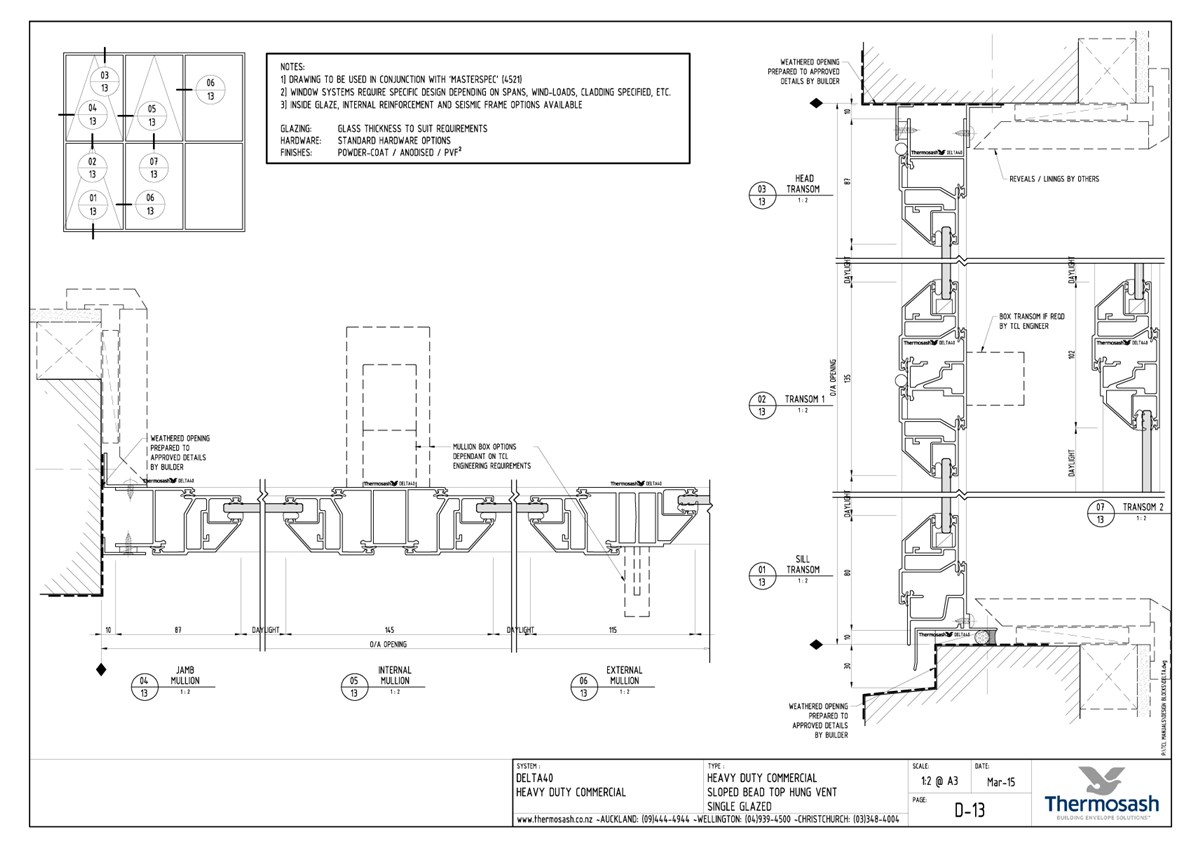

Delta 40 Commercial - Sloped Bead Top Hung Vent Single Glazed

Download files

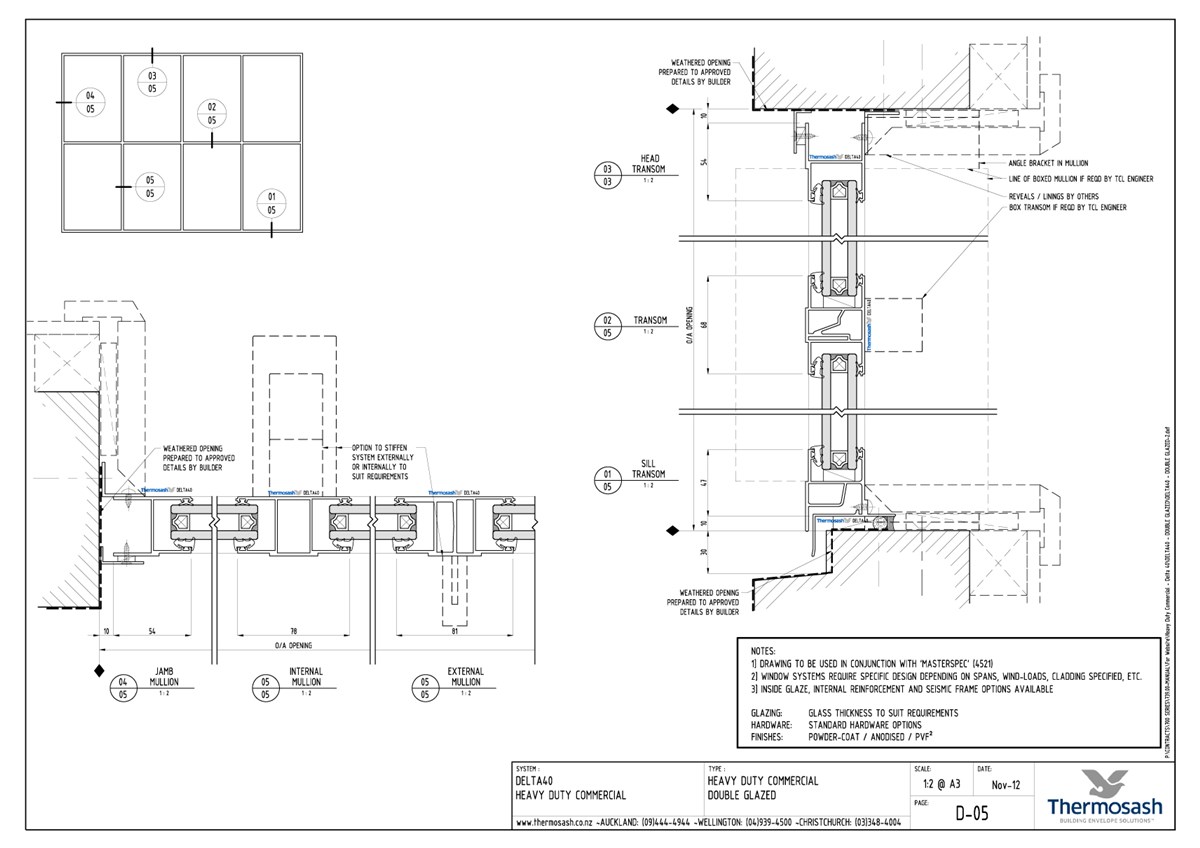

Delta 40 Commercial - Double Glazed

Download files

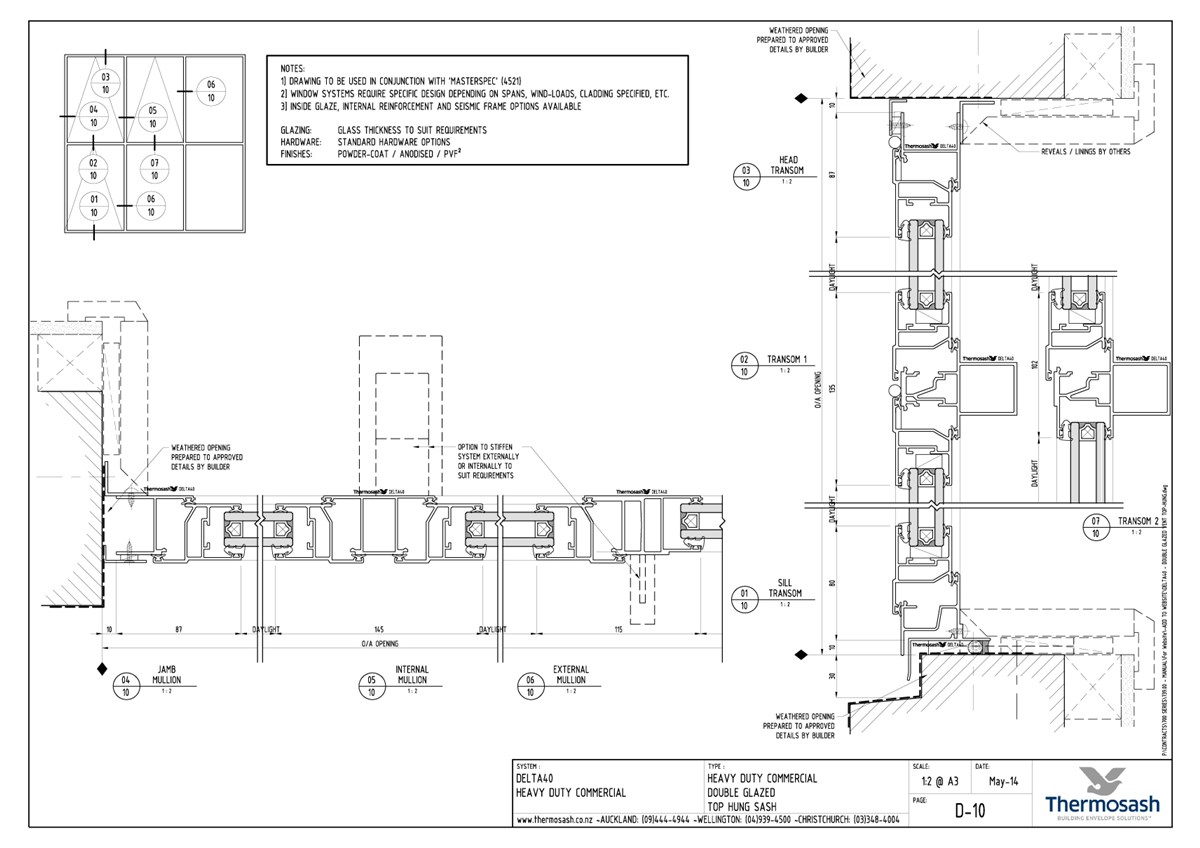

Delta 40 Commercial - Double Glazed Top Hung Sash

Download files

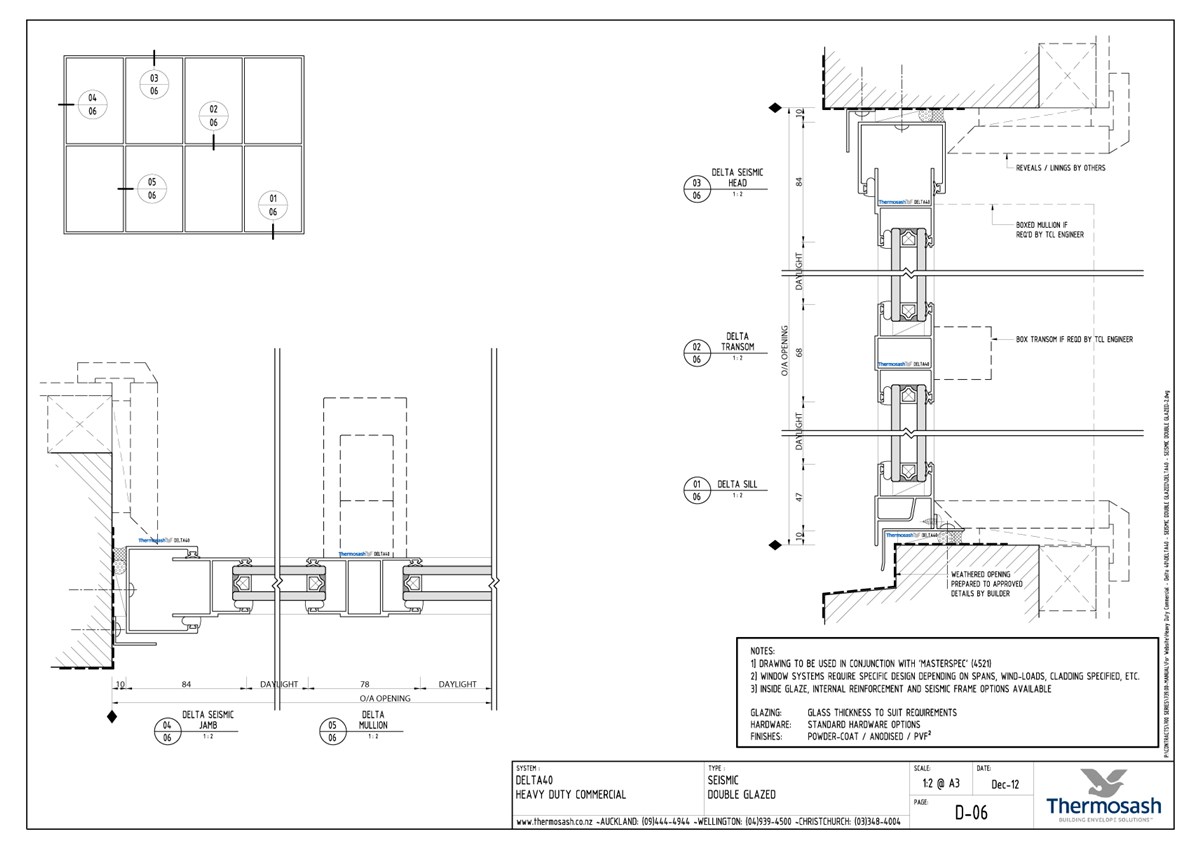

Delta 40 Commercial - Seismic Double Glazed

Download files

Specification

We recommend using Masterspec 4521TS Commercial Windows when specifying this suite.

Finishes

  • Polyester powdercoat - both standard and special colours available
  • Anodised - all anodised colours available - commercial grade 20 Micron finish recommended
  • PVF2 Fluorocarbon finishes - available on request
