Thermally Broken
DS-50TB Parting Slider
Product Description
The DS-50TB parting slider suite is non seismic with thermally broken aluminium frames and integrated IGU glazing, designed for commercial and multi-storey residential use.
Frame depth:
42mm Sliding door | 53.5mm Sliding door with sash
Glass thickness:
24mm to 28mm IGUs
Functionality:
Parting: Left / Right / Biparting
Integration: Side light + sash / overlight + sash
Fabrication
Prefabricated locally in New Zealand by Thermosash. Our DecarbALTM aluminium achieves a very low carbon footprint that significantly outperforms readily available alternatives. Thermosash has access to suppliers of low carbon high performance glazing for an integrated solution.
Maximum span
The spanning ability will vary depending on the structural system and environmental loads (e.g. wind). Thermosash specifically engineers the best suite options to meet project and environmental requirements.
Performance code compliance
- AS/NZS1170 (Structural Design Actions)
- NZS4211 (Performance of Windows)
- NZS4223 (Glazing in Buildings)
- AS/NZS 4284:2008 (Water / Air Pressure/ Air Leakage):
Thermal performance
Thermal modelling resulted in insulation performance R-values of:
-
- R0.41 (high-end glass IGU R1.1)
- R0.38 (lower spec glass IGU R1.3)

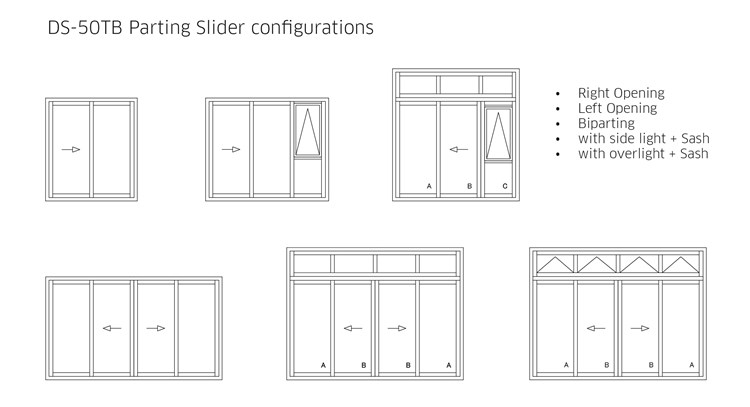

Configurations

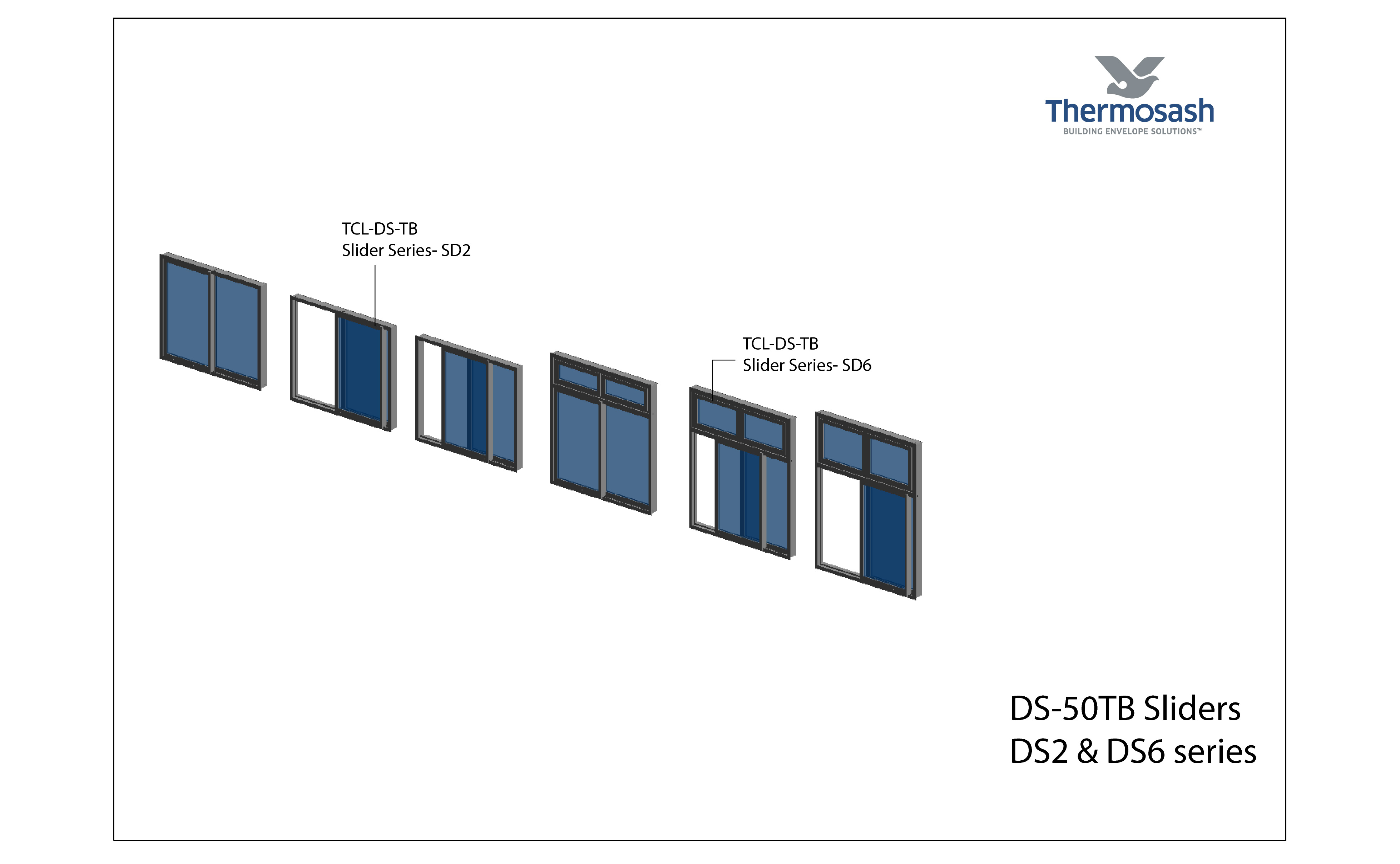

A variety of configurations are available. The slider can be integrated with side light and/or overlight with fixed glazing or with a sash.
Engineering
We custom design all our suites to suit each project to maximise the efficiencies within the suite and often to incorporate added elements or unique building structures, building movements or floor heights.
Warranty
The standard warranty is 10 years from the date of practical completion for these products. This covers workmanship and weather tightness, providing the subcontract includes fabrication, installation and glazing of all components, and the maintenance schedule is adhered to.
Maintenance
It is recommended by almost all material suppliers that building washing should occur every 3-6 months to prevent staining to glass and prevent environmental pollutants from corroding metals and to maintain the material warranties.
A full maintenance manual is provided on completion of a project for all the elements integrated within a project. Compliance to a maintenance schedule is essential to maintaining the quality of the installed product over time. Using Thermosash-approved facade maintenance contractor/personnel ensures the highest standards are met.
